Corrugated Plastic & Polypropylene Sheets

Custom Sheets for Packaging & Industrial Fabrication

Custom corrugated polypropylene sheets and PP hollow board for reusable packaging, dividers, layer pads, boxes and industrial fabrication. Available in 2–12 mm thickness, 250–3,500 GSM, standard or custom dimensions, colors and fabrication options.

  • Available in 2–12 mm thickness
  • Custom cutting, scoring, printing and fabrication
  • Functional formulations confirmed to order requirements
  • Thickness and GSM selected according to application requirements
Thickness2–12 mm
GSM250–3,500 GSM; available range varies by thickness
MOQ5,000 sheets
Lead Time10–15 days after specifications and artwork approval

PP Corrugated Sheet Specifications

On this page, corrugated plastic sheets, corrugated polypropylene sheets, PP corrugated sheets and PP hollow board refer to our extruded polypropylene hollow-flute sheet products for packaging and industrial fabrication. This product family is also described as corrugated plastic board or fluted polypropylene sheets.

ProductPP Corrugated Plastic Sheets
MaterialPolypropylene (PP)
Thickness2–12 mm
Grammage250–3,500 GSM
Standard Size1,220 × 2,440 mm (approximately 4 × 8 ft)
Other Common Sizes1,000 × 2,000 mm; 1,200 × 2,400 mm
Maximum Width2,100–2,600 mm, depending on equipment, thickness, formulation and order specification
Maximum LengthUp to 12,000 mm, subject to production feasibility, finished specification, handling and logistics
Thickness ToleranceReference range ±0.1–0.3 mm; final tolerance confirmed according to order requirements
GSM Tolerance±5%
StructureExtruded Twin-Wall / Hollow-Flute
Flute DirectionLongitudinal / Transverse
ColorsWhite / Black / Blue / Green / Red / Yellow / Custom Colors
Custom DimensionsAvailable

Maximum width depends on equipment, thickness, formulation and order specification. Lengths up to 12,000 mm require confirmation of production feasibility, finished specification, handling and logistics. The thickness tolerance is a reference range; final tolerance must be confirmed according to order requirements.

Thickness & GSM Options

Thickness and GSM (grams per square metre) are related but separate specification variables. The following ranges are reference options for procurement.

ThicknessReference GSM Range
2 mm250–450 GSM
3 mm350–1,000 GSM
4 mm650–1,500 GSM
5 mm800–1,500 GSM
6 mm1,000–1,500 GSM
7 mm1,500–1,600 GSM
8 mm1,600–2,500 GSM
10 mm1,800–2,500 GSM
12 mm2,000–3,000 GSM

The overall available grammage range is 250–3,500 GSM. This does not mean every thickness can be produced at 3,500 GSM. Special thickness/GSM combinations are evaluated according to formulation, processing conditions and final application requirements.

Select the final specification according to rigidity, finished product structure, load, stacking, handling method, fabrication, reuse cycles, environment and formulation. Higher GSM does not automatically mean higher load capacity, and a thicker sheet does not automatically produce stronger packaging.

Use the existing GSM weight calculator to estimate theoretical corrugated plastic sheet weight by area and GSM.

Material & Formulation Options

Base ResinPolypropylene
Virgin PPAvailable
Recycled PPAvailable
Virgin / Recycled RatioCustomizable
100% Virgin PPAvailable upon specification confirmation
Material FormulationCan be adjusted according to customer requirements
Color MasterbatchAvailable
Functional AdditivesAvailable
Calcium Carbonate FillerOptional, subject to formulation

Material formulation may be adjusted for mechanical requirements, environment, color, static control, UV exposure, flame-retardant requirements and food-contact applications. Different additives and material systems may affect mechanical performance, processing and regulatory suitability. Additives cannot be assumed to combine freely; the complete formulation requires specification confirmation.

Functional Grades & Environmental Performance

Functional performance and available documentation are confirmed according to the selected material grade and project requirements.

Low-Temperature Formulations

Low-temperature PP formulations are available for applications down to −40°C. Final performance depends on material formulation, virgin/recycled ratio, sheet specification, loading conditions and validation requirements. Evaluation should cover low-temperature impact, brittleness, folding performance, load performance and long-term stability.

UV Stabilization

UV stabilizers and UV-stabilized formulations are available for outdoor reusable packaging, agricultural packaging, outdoor product protection and prolonged light exposure. Exposure conditions and the required performance must be confirmed for the application; no fixed outdoor lifespan is specified.

Anti-Static & Conductive Options

Anti-Static10⁶–10⁹ Ω reference range
Conductive10³–10⁵ Ω reference range

Final electrical performance must be confirmed according to the required test method, resistance definition/type, environmental and testing conditions, duration of performance and performance retention requirement. These are reference specification ranges, not a certification claim. Applications may include electronics packaging, component separation, factory circulation and electronic component transport.

Flame-Retardant Options

Flame-retardant formulations with HB and V-rated options can be developed according to customer requirements. UL94 classification references include HB, V-2, V-1 and V-0. Final classification depends on formulation, sheet thickness and actual test results; additive use alone does not establish a rating.

Food-Contact Formulations

Food-contact suitable PP formulations can be supplied where required. SGS-tested formulations are available, subject to the scope and conditions of the applicable test report. Suitability must be confirmed for the selected formulation and intended contact conditions; it does not apply automatically to every sheet or recycled-content formulation.

Abrasion Resistance

Abrasion resistance is an inherent PP material property and an application characteristic to consider for repeated handling. The required performance should be assessed for the selected formulation and application.

Sheet Sizes, Flute Direction & Custom Dimensions

Standard sheets are 1,220 × 2,440 mm (approximately 4 × 8 ft). Other common sizes are 1,000 × 2,000 mm and 1,200 × 2,400 mm; custom dimensions are available within the production and handling limits listed above.

Twin-Wall Structure & Flute Direction

Our extruded twin-wall polypropylene hollow sheet consists of two outer skins connected by continuous internal ribs/flutes. Longitudinal or transverse flute direction can be selected according to finished product dimensions, cutting direction, folding direction and structural design.

Exposed twin-wall edge of a gray PP corrugated sheet held by hand

Two skins enclose the hollow-flute core. Identify the flute direction on the part drawing before planning cuts and folds.

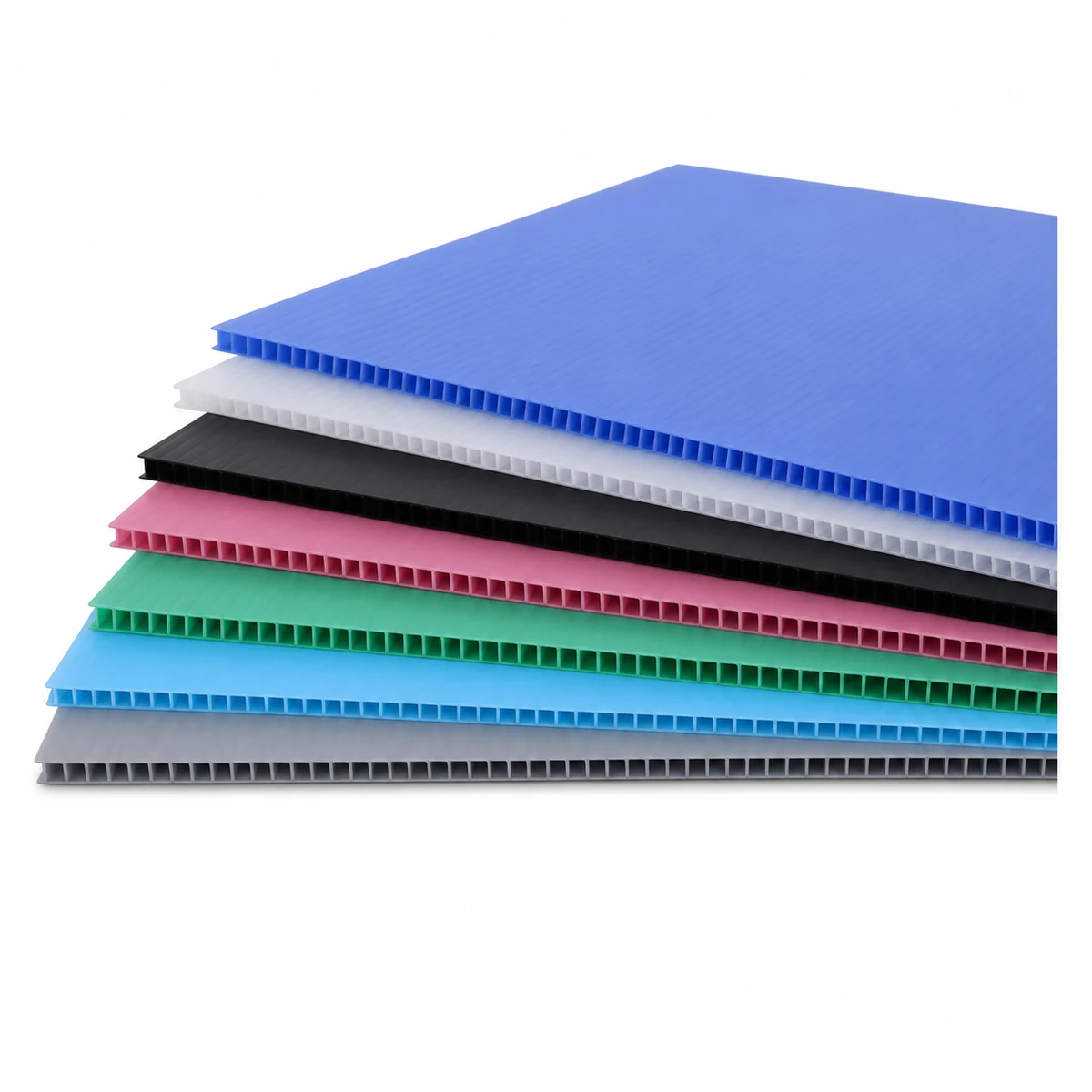

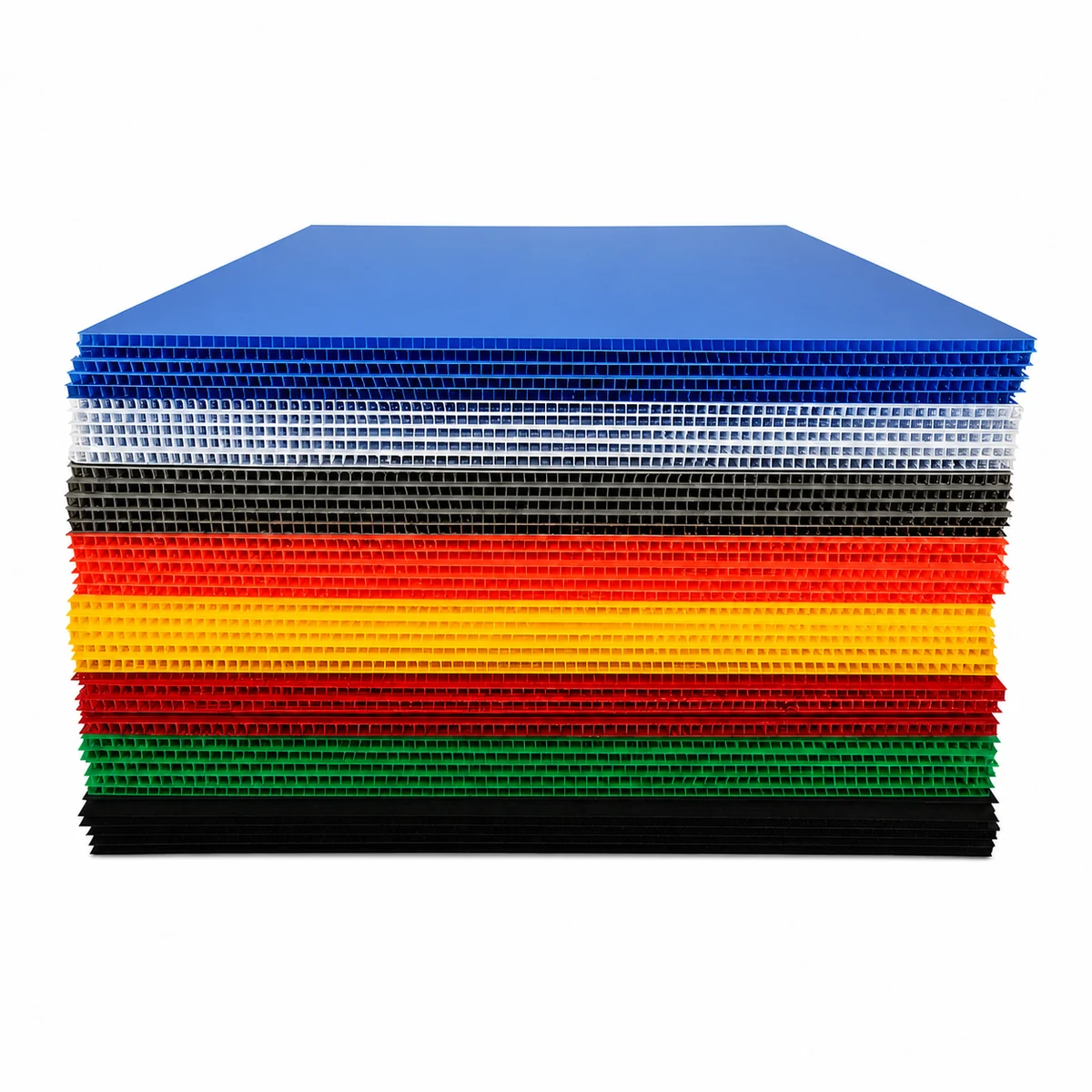

Standard & Custom Colors

White, black, blue, green, red and yellow are available, along with custom colors matched to customer requirements or color references. MOQ and color tolerance may depend on the order specification.

Fabrication & Processing

Dimensions, cutting, scoring, punching, die-cutting and printing can be customized according to the finished product. Processing options support layer pads, dividers, liners, protective panels and application-specific fabricated components.

Printing can include custom logos, text, colors and handling marks. Confirm the drawing, flute direction, folding requirements, artwork and any required surface options before production.

Black PP corrugated sheets stacked on a processing table

Sheet material positioned on a processing table. Mark cut outlines, score lines and flute direction on the part drawing.

Industrial Packaging Applications

Sheet specifications can be selected for reusable packaging, corrugated plastic boxes, bins and totes, automotive component packaging, industrial dunnage, warehouse and returnable packaging, and produce and cold-chain packaging.

Black components positioned with white supports on blue PP corrugated board

Industrial Fabrication & Functional Grades

Custom-cut and fabricated sheets support industrial fabrication and component protection. Functional grades are selected according to project requirements. For printed sheet uses, review signs, displays and promotional applications.

Manufacturing & Quality Control

PP sheet production combines resin and formulation selection with extrusion, cooling, calibration and cutting. The hollow-flute structure is formed during extrusion. For the manufacturing process and practical inspection checks, see how PP corrugated plastic sheet is made.

PP corrugated sheet production equipment with a material hopper

Material feed and processing equipment along the line. Define the required sheet specification and inspection checks before production.

Before production, confirm dimensions, thickness, GSM, material formulation, color, fabrication, artwork and functional requirements. Define acceptance checks for dimensions, thickness/GSM, cross-section, flatness, color and printing, with an approved sample where applicable. Required inspection and test documentation should be agreed for the order before shipment.

Frequently Asked Questions

What is the difference between corrugated plastic sheets and corrugated polypropylene sheets?

Corrugated plastic is a broader material description. On this page, both names refer to our polypropylene (PP) twin-wall hollow-flute sheets for packaging and industrial fabrication.

What thicknesses are available?

Available thicknesses are 2–12 mm. Select thickness together with GSM, formulation, finished product structure and application requirements.

What GSM ranges are available?

The overall available grammage range is 250–3,500 GSM, while available GSM varies by thickness. Not every thickness can be produced at 3,500 GSM; special combinations require evaluation of formulation, processing conditions and final application requirements.

What sheet sizes are available?

Standard size is 1,220 × 2,440 mm; other common sizes are 1,000 × 2,000 mm and 1,200 × 2,400 mm. Custom dimensions are available. Maximum width is 2,100–2,600 mm depending on equipment, thickness, formulation and order specification. Lengths up to 12,000 mm are subject to production feasibility, finished specification, handling and logistics.

Can PP corrugated sheets be made anti-static or conductive?

Yes. Anti-static options have a reference resistance range of 10⁶–10⁹ Ω and conductive options 10³–10⁵ Ω. Final performance requires confirmation of test method, resistance definition/type, environmental and testing conditions, duration of performance and performance retention requirements.

Can PP corrugated sheets be used in cold environments?

Low-temperature formulations are available for applications down to −40°C, subject to formulation and validation. Final performance depends on virgin/recycled ratio, sheet specification, loading conditions and the required low-temperature impact, brittleness, folding, load and long-term stability checks.

What information is required for a quotation?

Provide size, thickness, GSM, application, quantity, color, printing, flute direction if required, functional requirements and material requirements, along with destination country or port. The standard MOQ is 5,000 sheets. Lead time is 10–15 days after specifications and artwork are confirmed.

Get a Quote for Custom PP Sheets

Tell us the application, sheet dimensions, thickness or GSM, required quantity, performance requirements and destination. We will recommend a suitable material grade and processing solution.

  • Finished application
  • Sheet dimensions
  • Thickness or GSM
  • Required quantity
  • Required performance grade
  • Destination country or port
